Description
The single control kit contains one keypad control device, and one single mounting plate. The control is available in the short device depth only. Mounting plates are available for drywall only applications or alternate material (solid surface) applications.
A removal tool is required for each 22 System installation (sold separately).
Specs
- 1x - Single Mounting Plate
- 1x - Keypad Control, RJ45/CAT5
Installation

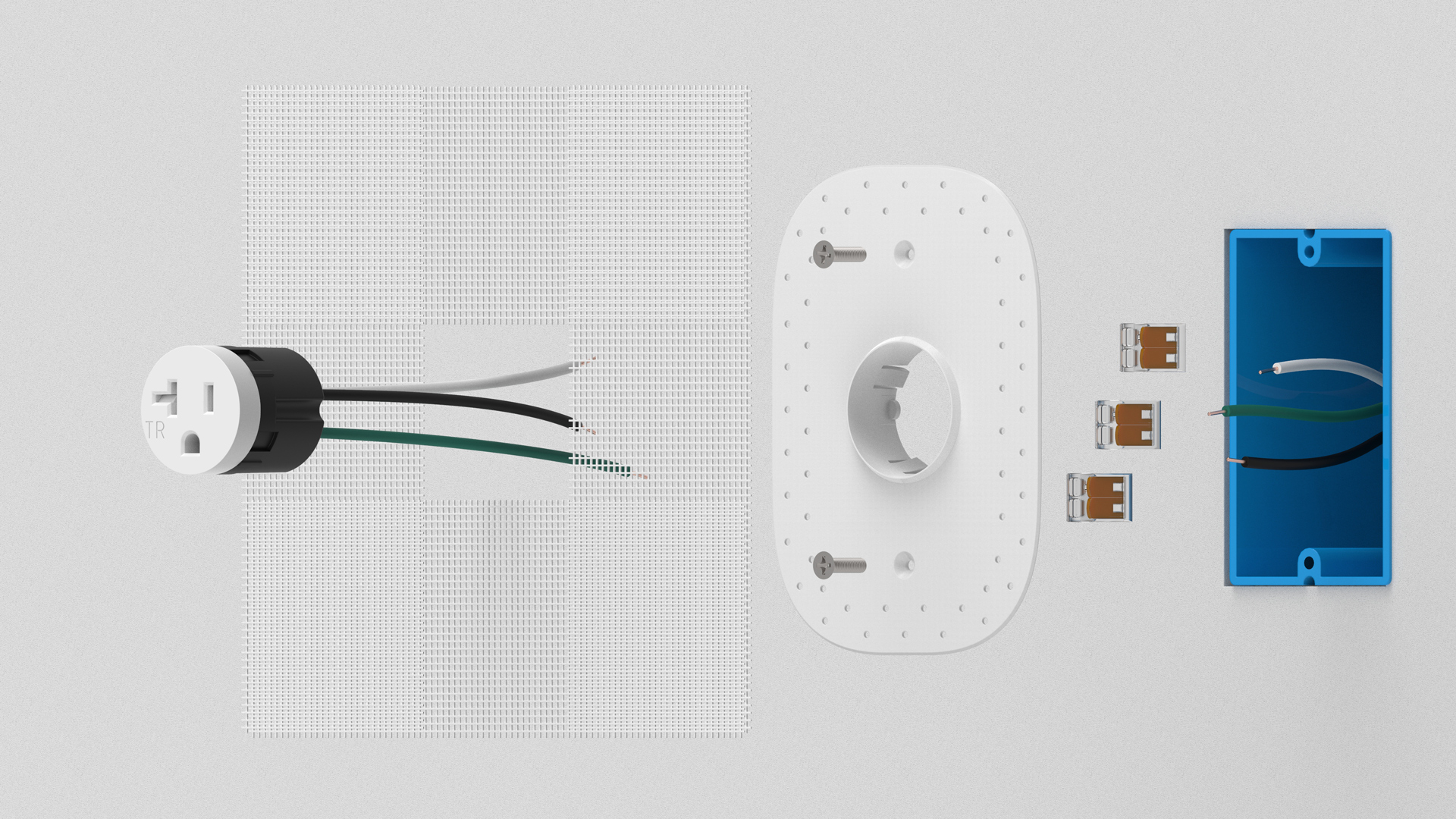

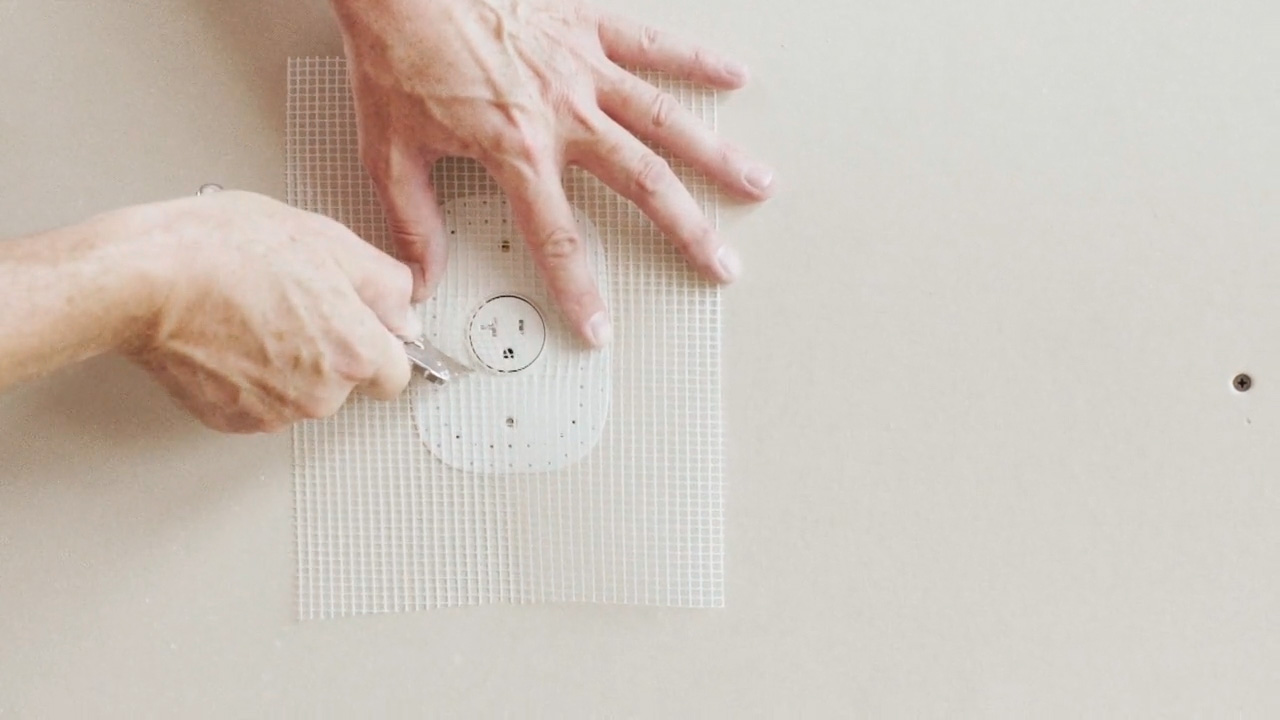

Drywall Installation Video
00:01:00

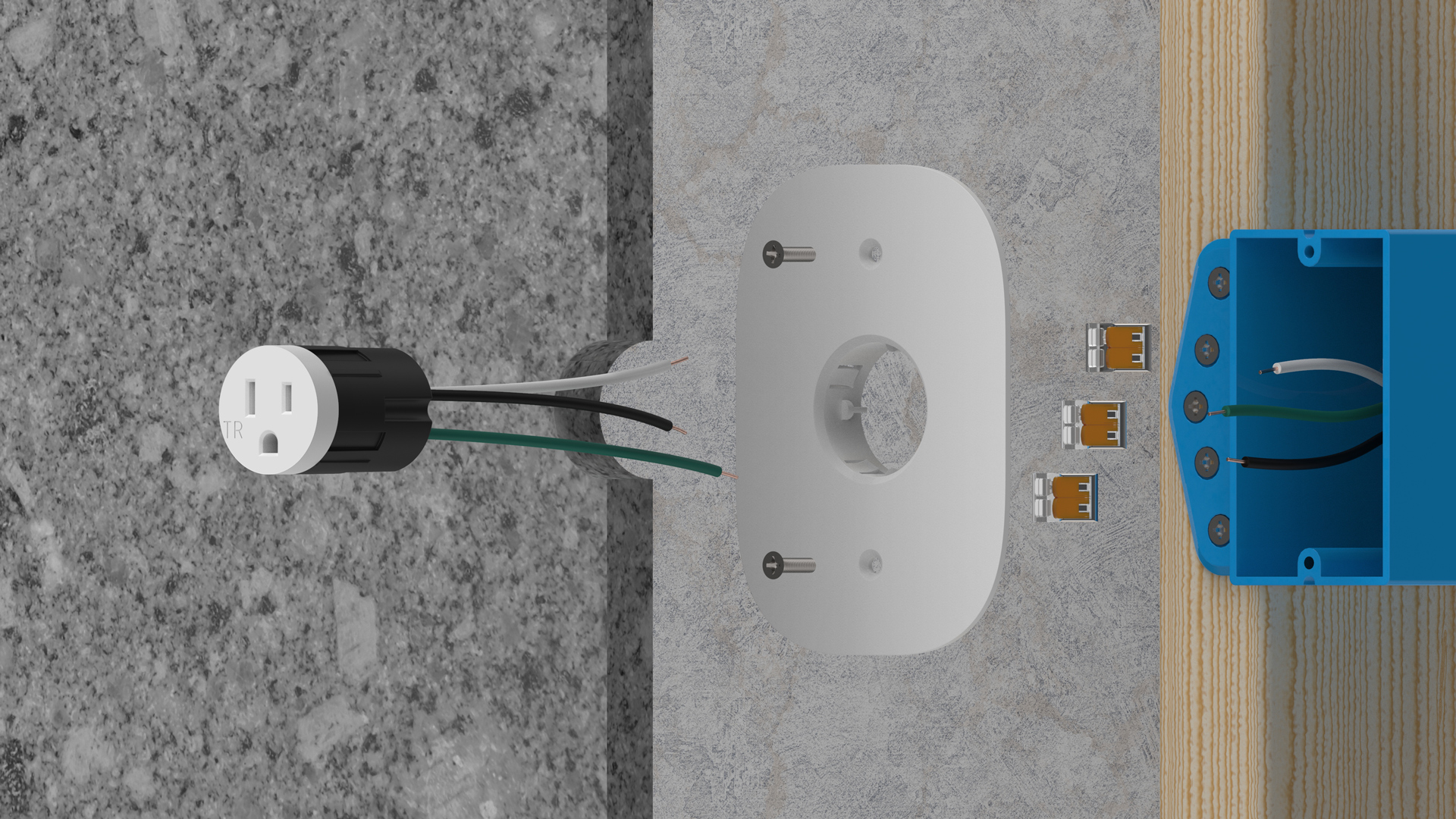

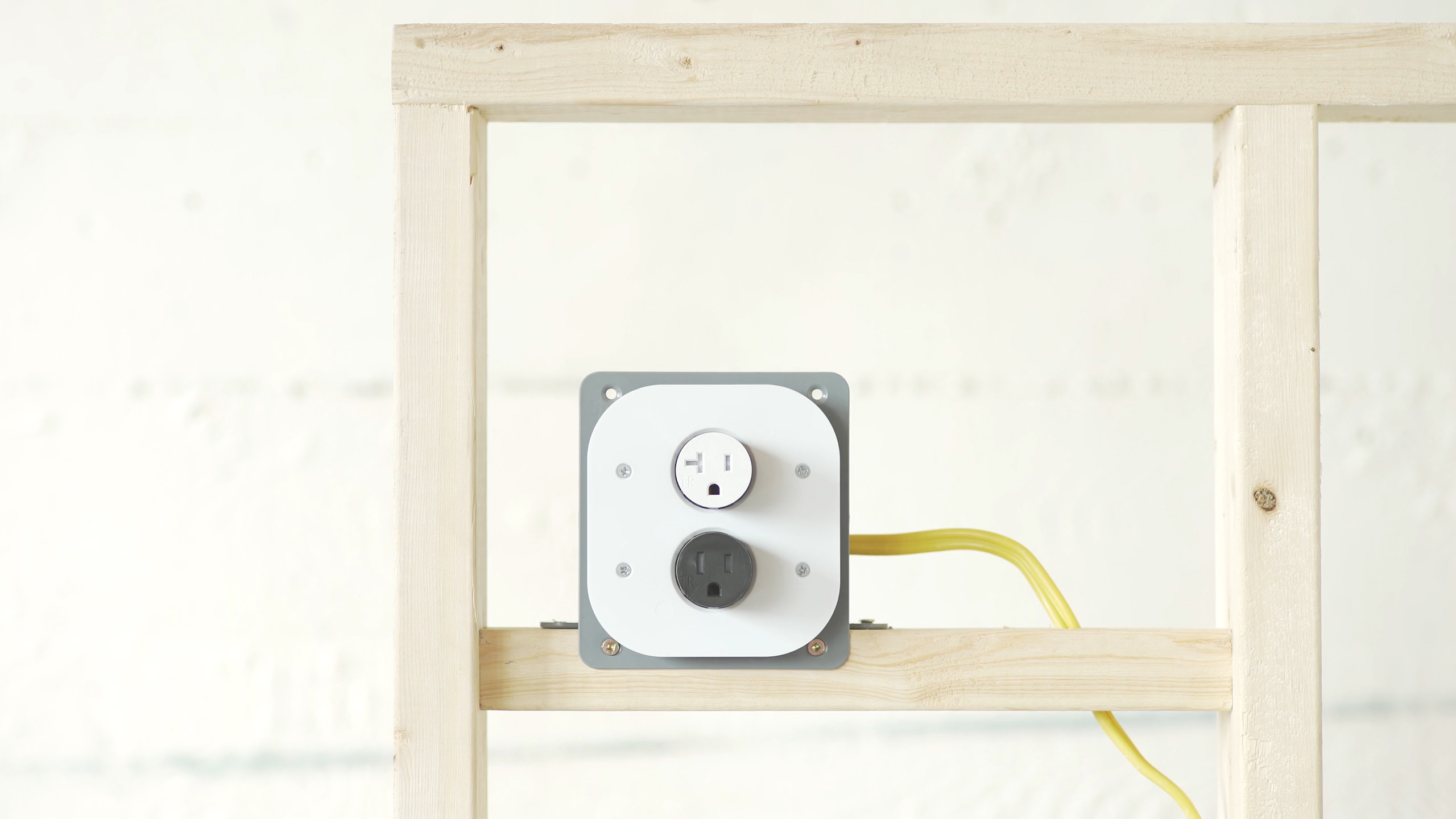

Alternate Material Installation Video
00:01:00
Materials
22 System may be mudded directly into drywall or set flush into millwork, marble, glass or any other surface.
