Description

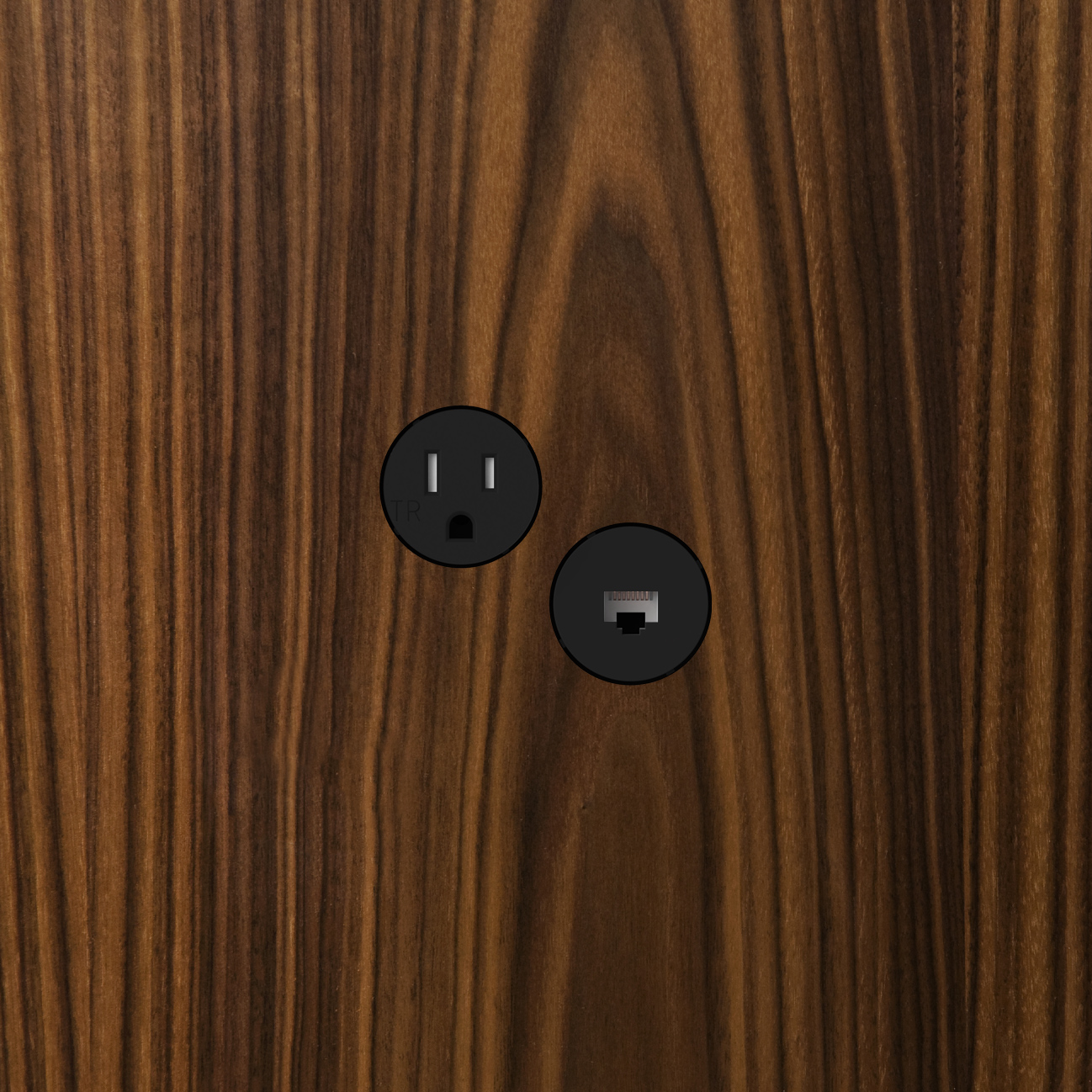

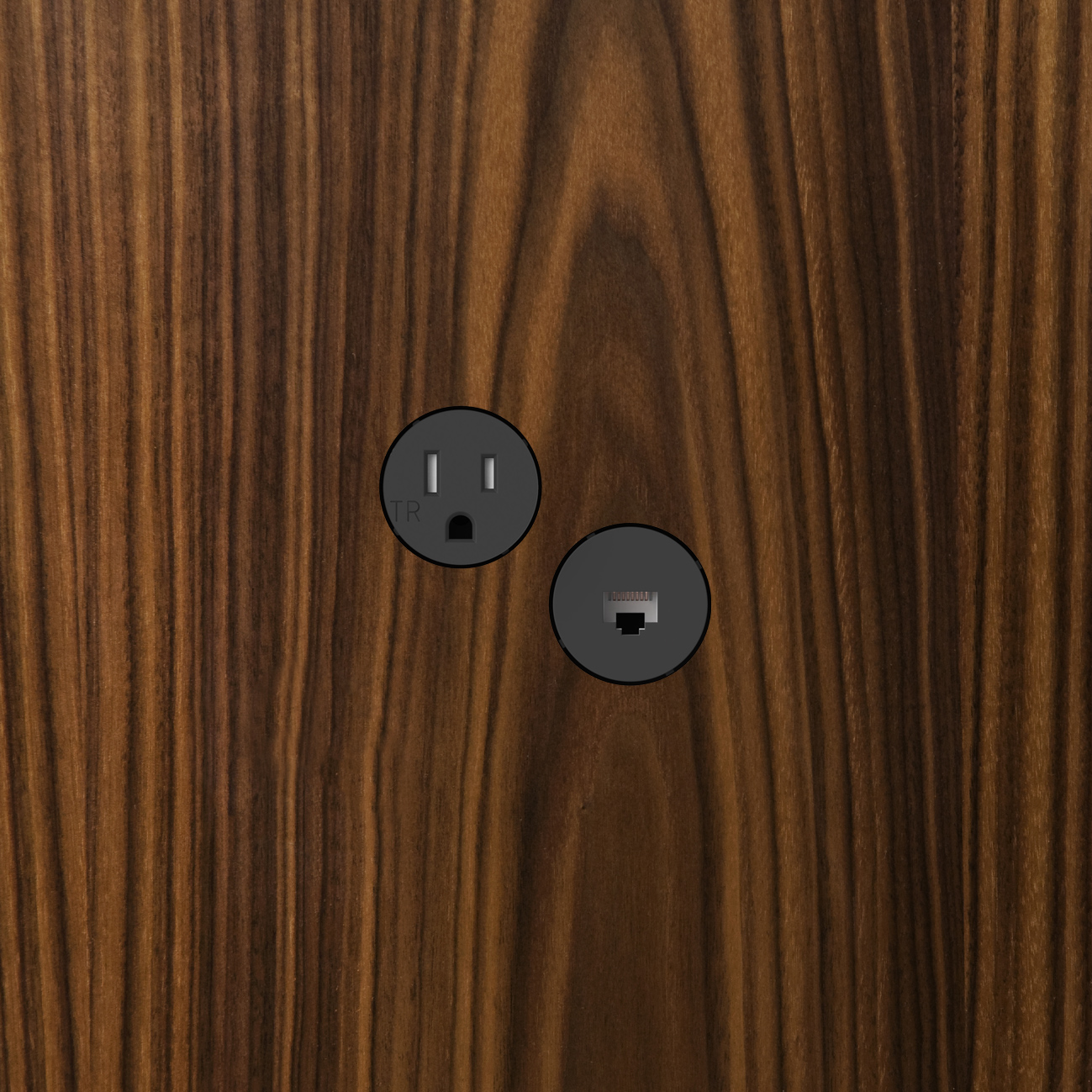

The single data kit contains one RJ45 CAT6A data device, and one single mounting plate. The cable is available in three device lengths (short, medium, or long). Mounting plates are available for drywall only applications or alternate material (solid surface) applications.
A removal tool is required for each 22 System installation (sold separately).
Specs
- 1x - Single Mounting Plate
- 1x - Data, RJ45 CAT6A
Installation

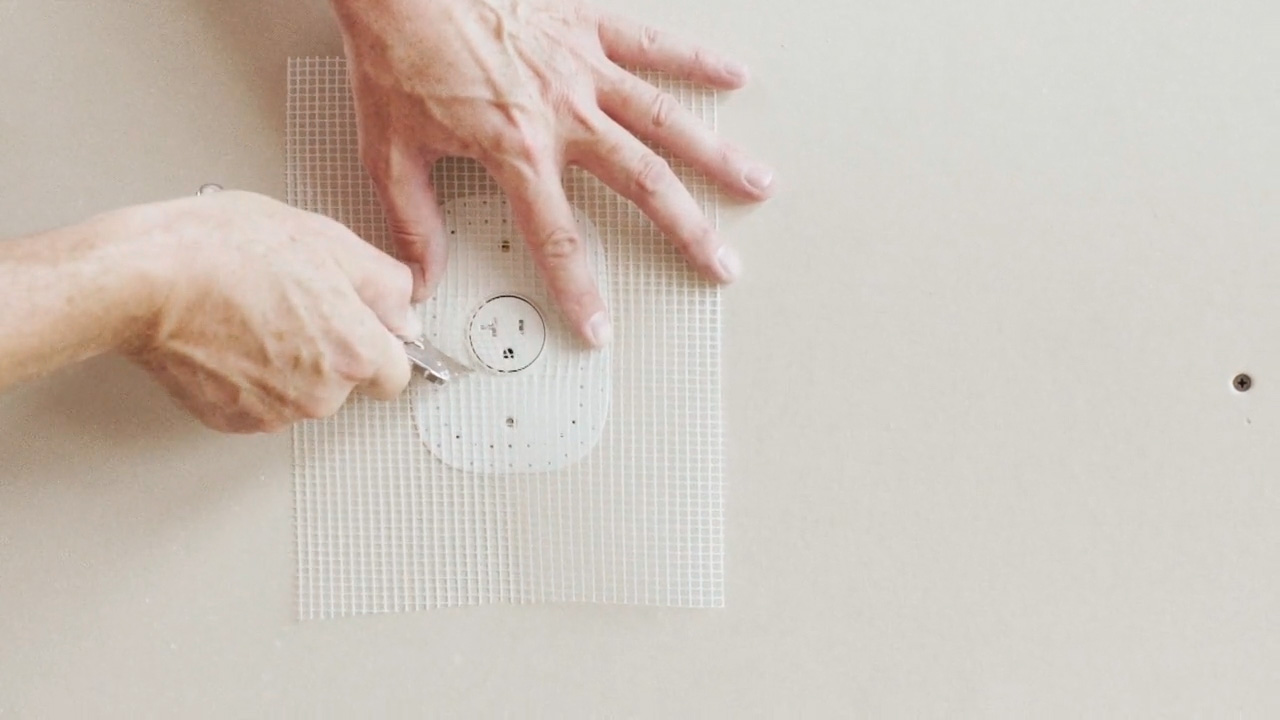

Drywall Installation Video
00:01:00

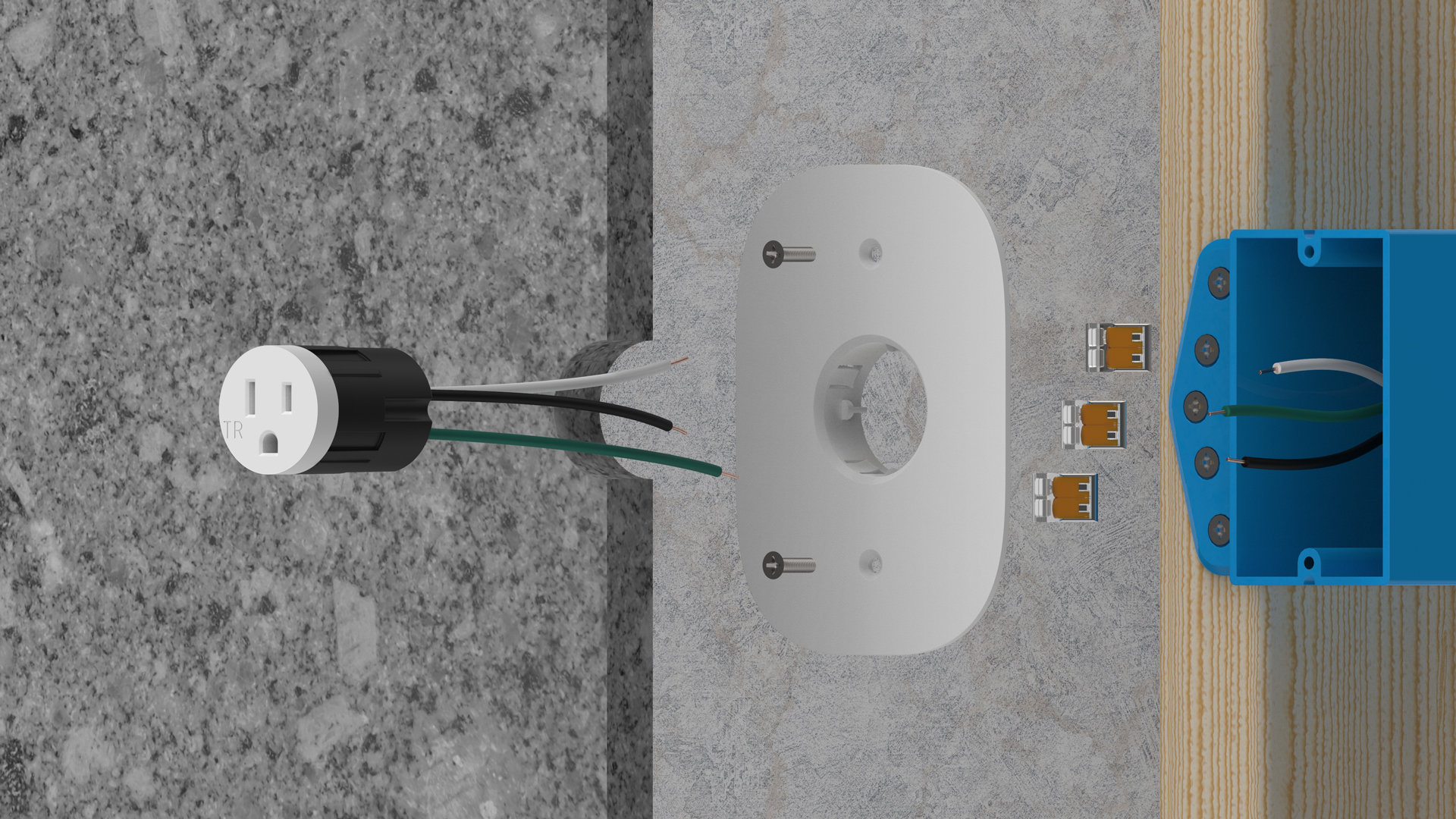

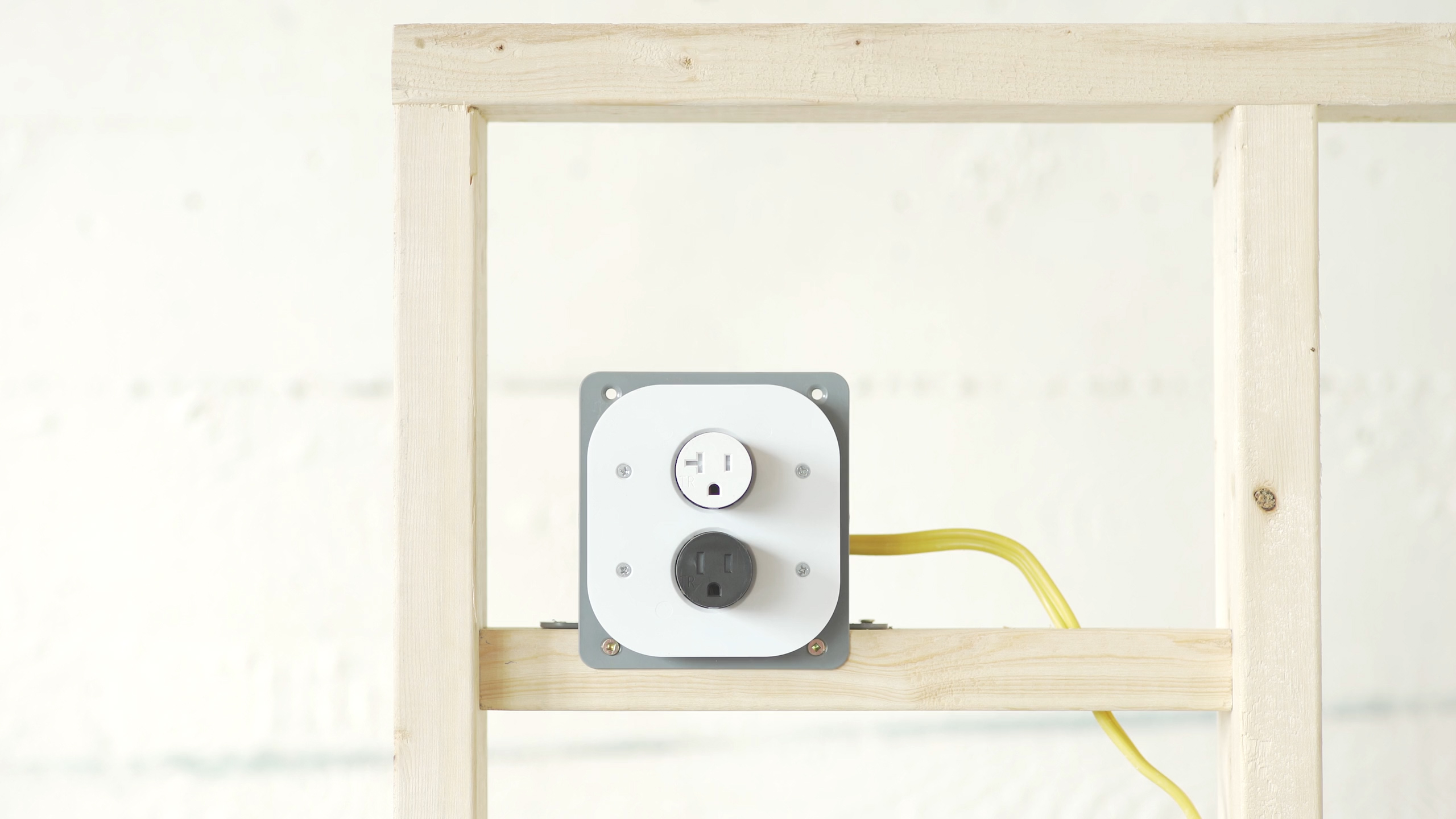

Alternate Material Installation Video
00:01:00
Materials
22 System may be mudded directly into drywall or set flush into millwork, marble, glass or any other surface.
Recommended Add-ons
Success! You just added
22.2.1.9SW
$255 CAD
Single Data Kit
$255 CAD
Hold on! Don’t forget.
Do you have a Removal Tool?
Please note that a Removal Tool is required for all 22 System installations. If you don't already have one, please add one to your cart before you checkout. Thank you!
